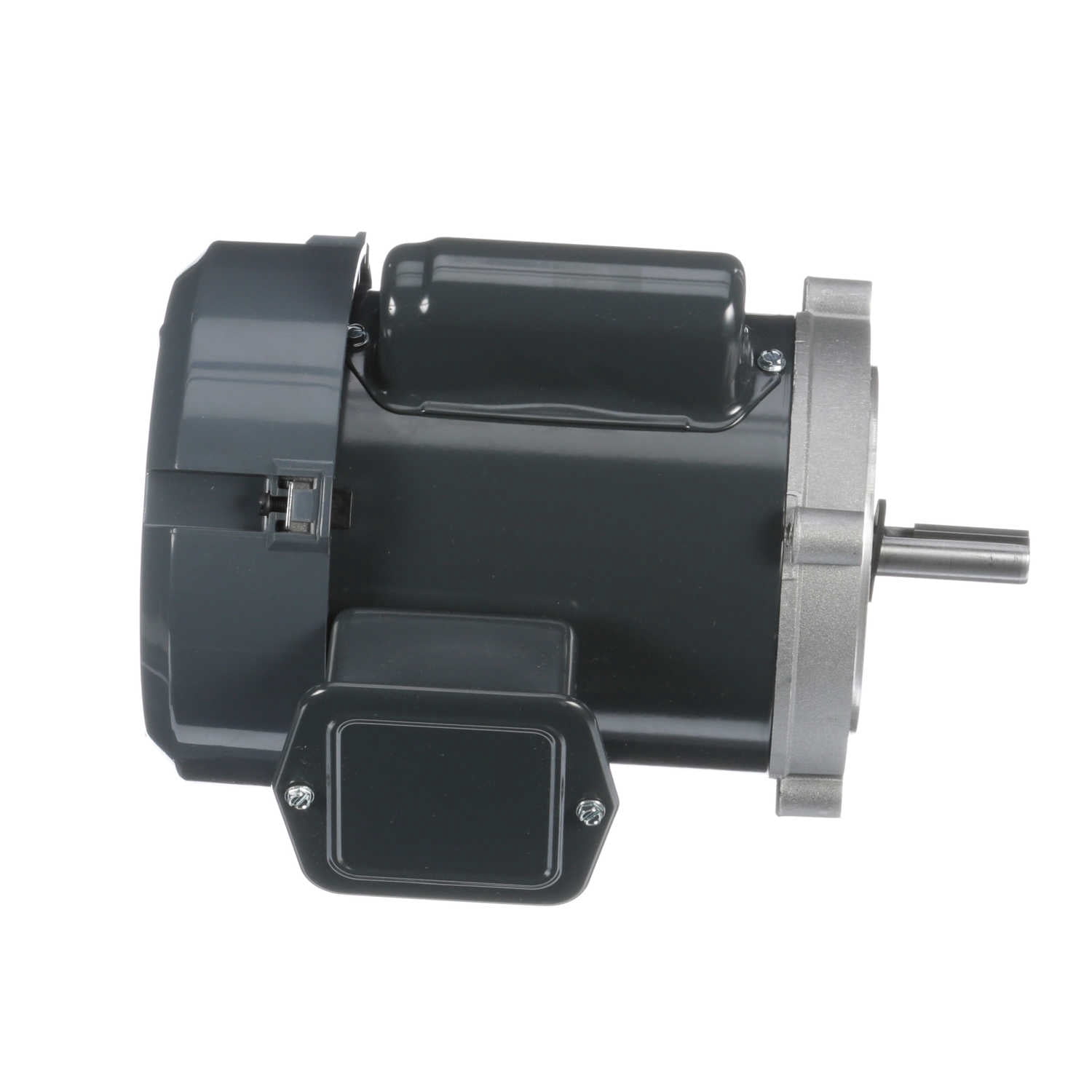

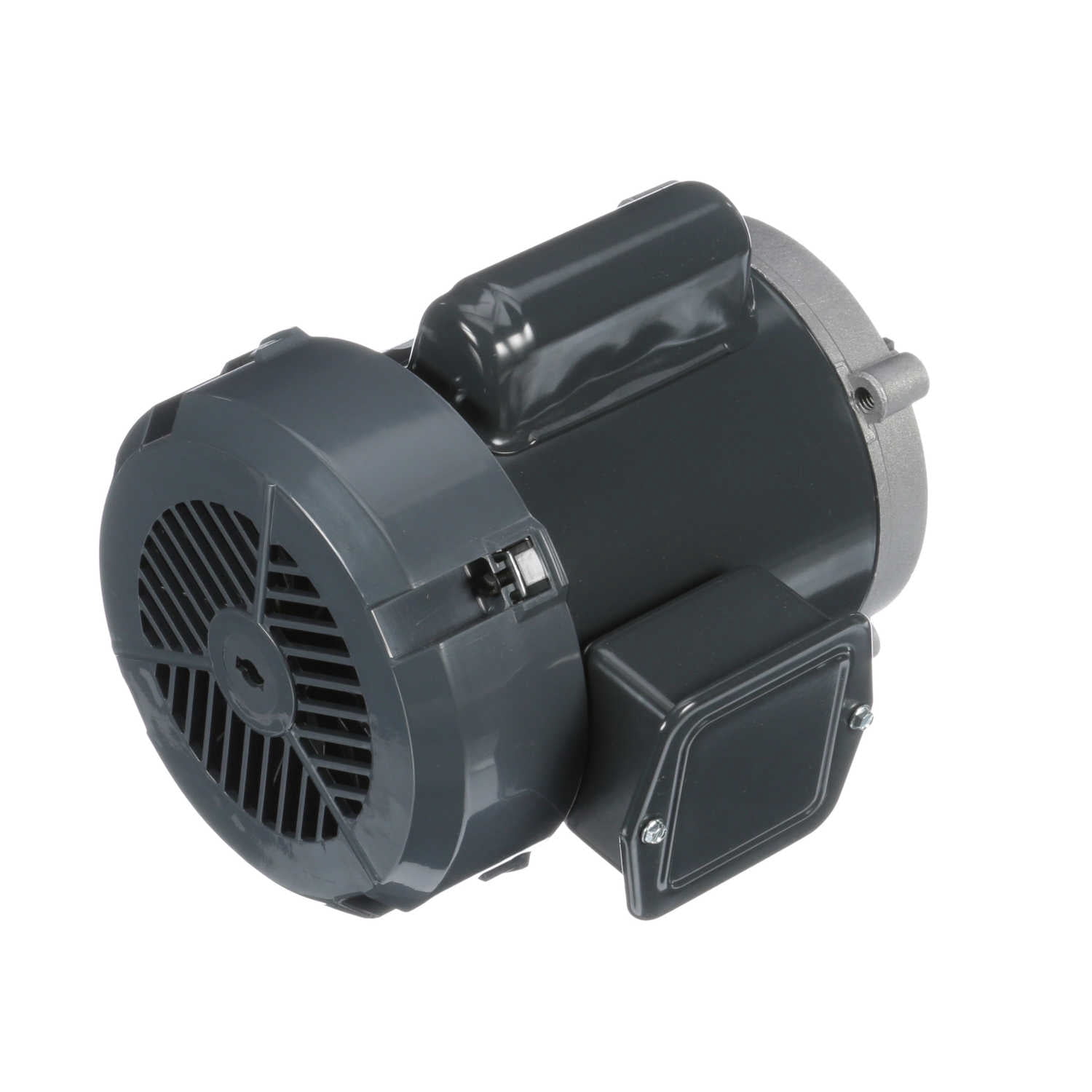

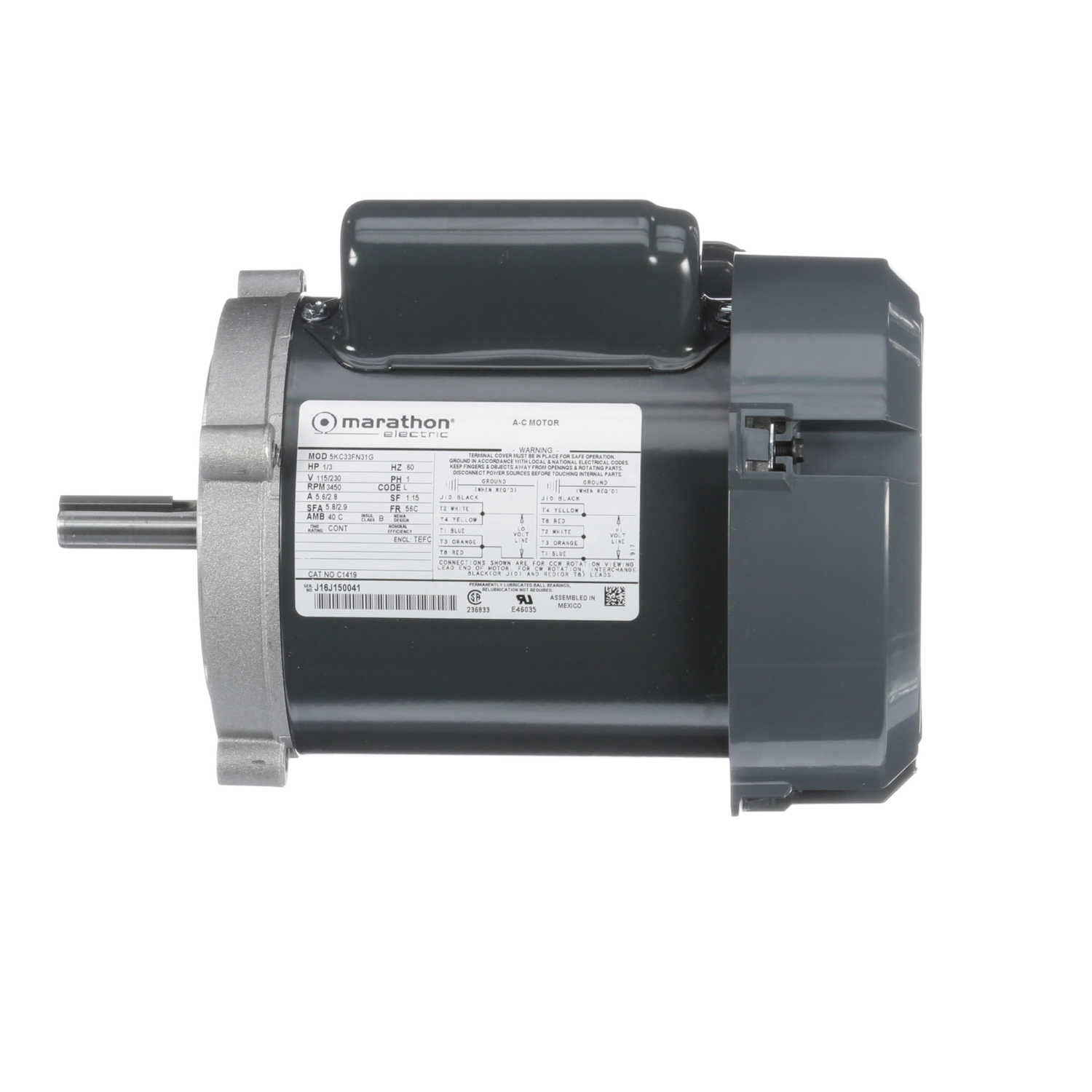

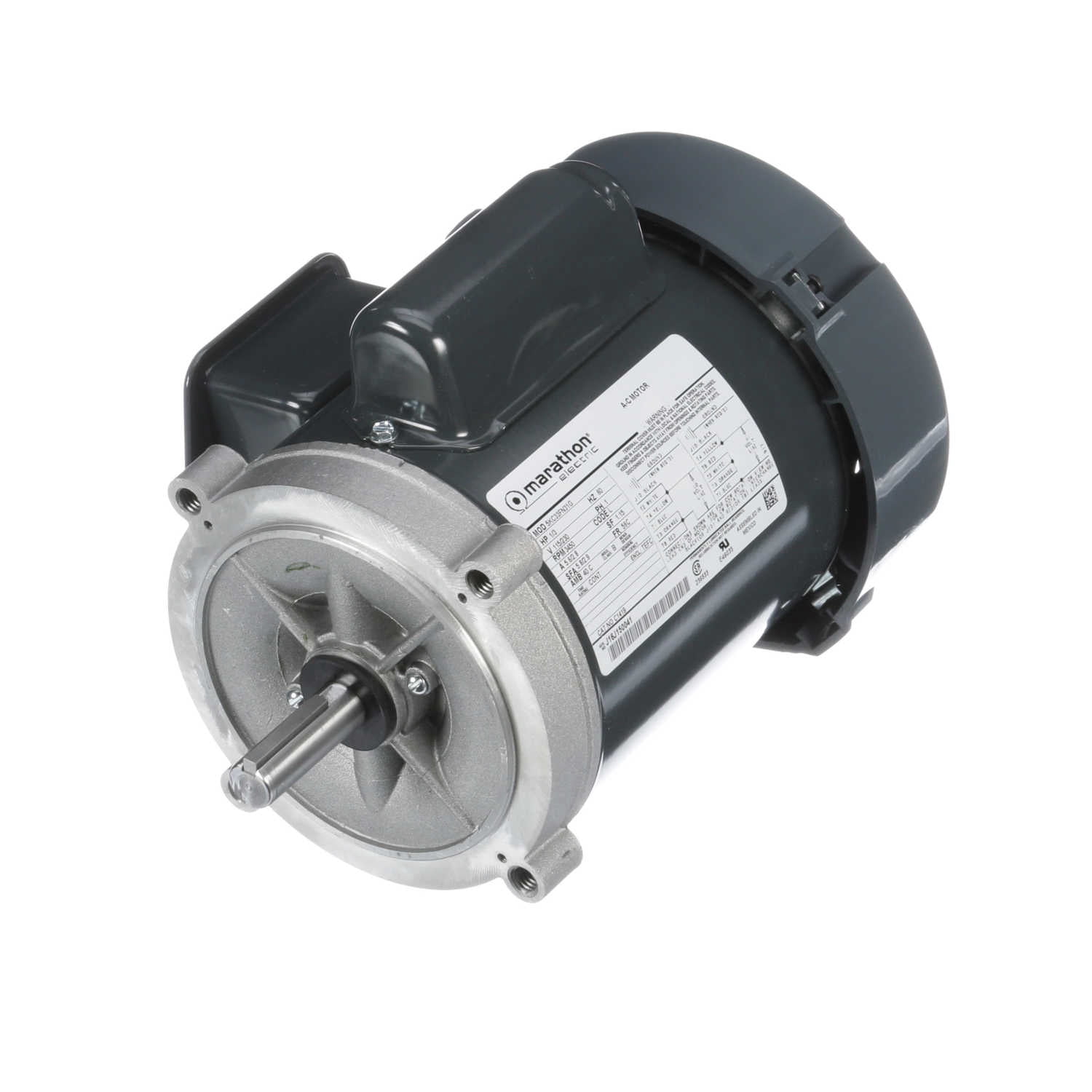

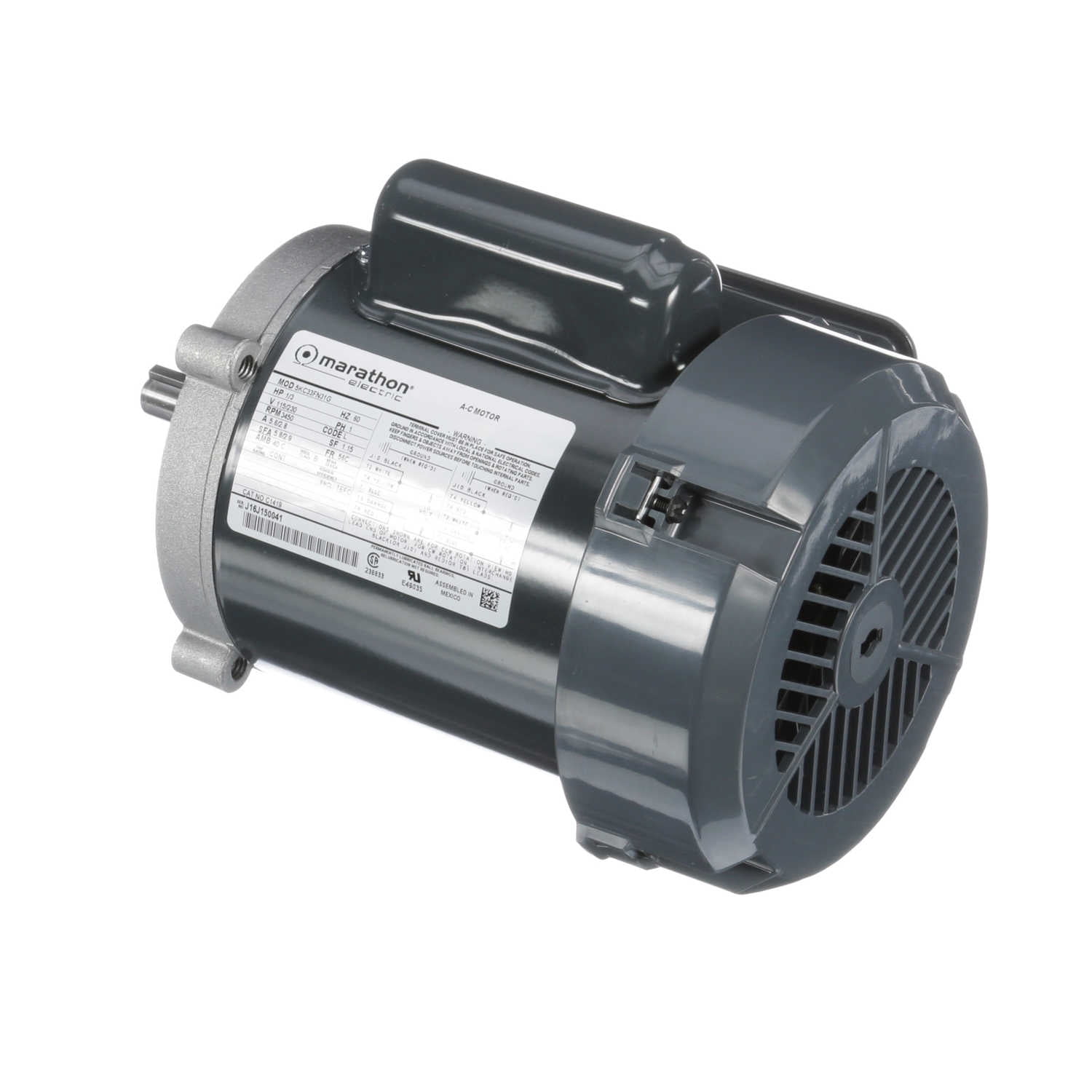

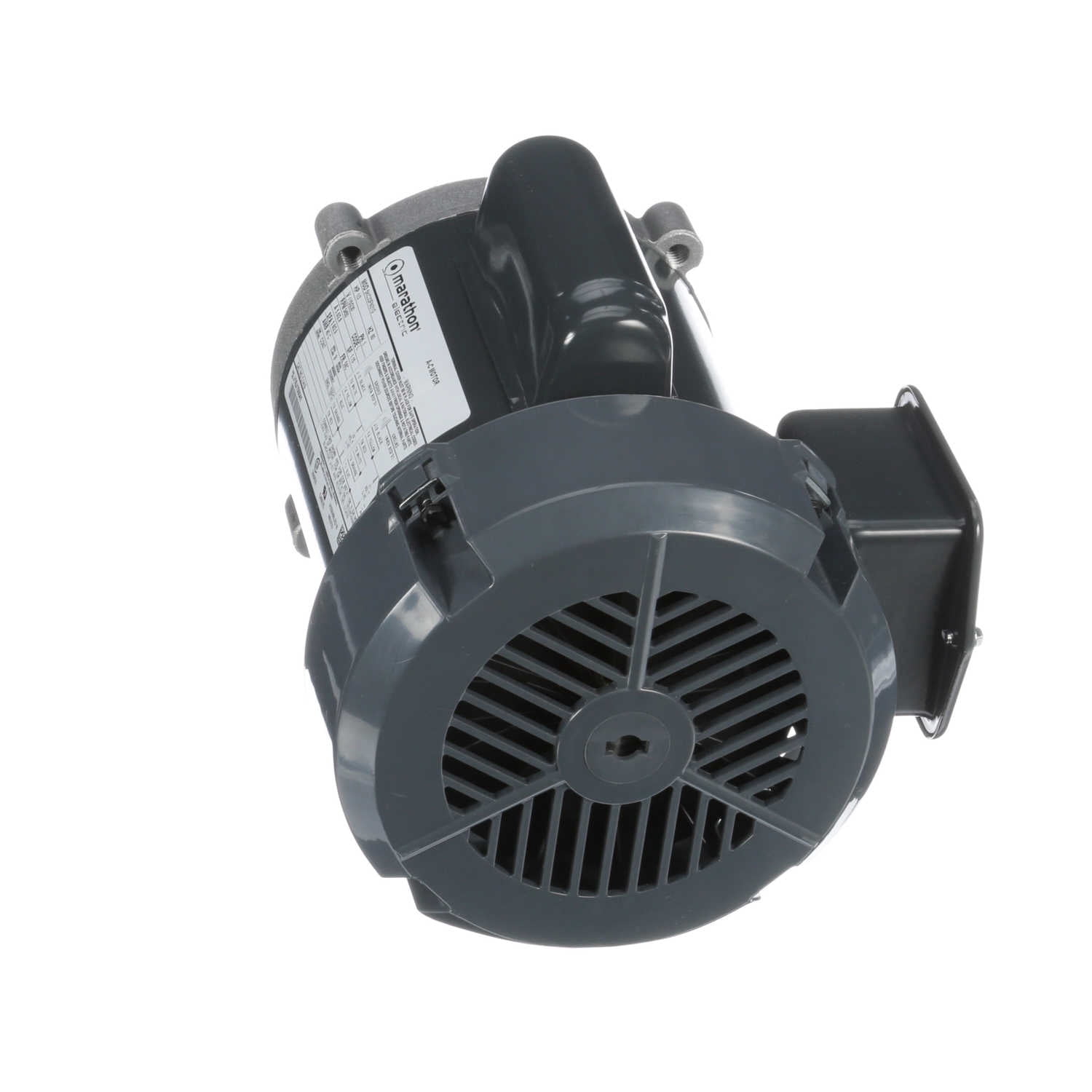

Marathon C1419 Electric Motor 1/3 HP 3600 Rpm 1PH 115/230 Volt 56C 5KC33FN31G
Product details
| Management number | 230752406 | Release Date | 2026/06/18 | List Price | US$123.81 | Model Number | 230752406 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Leeson (formerly Marathon) C1419 general purpose motor by Regal Rexnord is a compact 1/3 HP single‑phase motor designed for high‑speed industrial and commercial applications. Operating at 3600 RPM on 115/230V power, this motor features a NEMA 56C C‑face frame with footless mounting and a totally enclosed fan‑cooled (TEFC) enclosure that protects internal components from dust and debris. Built for continuous duty, the motor uses a capacitor‑start induction‑run design, Class B insulation, and ball bearings to provide dependable performance, making it well suited for pumps, small compressors, blowers, and other direct‑coupled equipment.
- Horsepower: 0.33 HP (1/3 HP, 0.25 kW)
- Phase: Single Phase
- Voltage: 115/230V
- Frequency: 60 Hz
- Speed: 3450–3600 RPM
- Frame: NEMA 56C
- Mounting: C‑Face (No Base)
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Service Factor: 1.15
- Duty Rating: Continuous Duty
- Insulation Class: B
- Electrical Design: Capacitor Start, Induction Run
- Poles: 2
- Bearings: Ball Bearings
- Shaft: 5/8 in Diameter, Keyed
- Rotation: Reversible
- Ambient Temperature Rating: 40°C
- Efficiency: 57.5 percent (Full Load)
- Certifications: UL Recognized, CSA Certified
| Horsepower | 0.33 HP |
|---|---|
| Electric motor type | AC Motor |
| Electrical phase | Single Phase |
| Maximum motor speed | 3600 rpm |
| Brand | Marathon Electric |
| Has nrtl listing certification | N |
| Assembled product height | 1.000 |
| Model | 5KC33FN31G |
